NEW AN/PVS-14 and 6015 Single Battery Units Hits the Market!

Postby Clutch » Sat Jun 03, 2006 3:15 pm

Hello all,

This is it!! After a long wait, available for the first time the Single battery unit AN/PVS-14 and 6015’s. These units have been restricted for quite some time to military and LE units.

The single-battery configuration delivers the same features and versatility as the earlier PVS-14 and 6015 dual-battery versions in a lighter weight monocular, providing greater mobility and comfort under normal operational conditions.

Some of the improvements over the dual battery configuration are,

·Lighter weight.
·Metal and tethered battery cap with dual inner and outer O-rings for a better seal.
·Machined brass interior battery housing.
·Beefed up and stronger lanyard lug attachment points
·Newly designed manual gain control knob.

AN/PVS-14 SB and 6015 SB feature Automatic Brightness Control and Bright Light Protection, as well as manually adjustable gain for urban environment (PVS-14 only, as the 6015’s do not utilize a manual control gain.) Each AN/PVS-14 SB and 6015 SB units come standard with the following accessories.

·Mil Spec headgear
·Head mount adapter J-Arm,
·Soft carrying case,
·Demist shield,
·Sac lens,
·Owners Manual
·Full 2-year ITT factory warranty

What is even more exciting is for the first time, these units are available with a choice of tubes WITH ITT Data Cards (for the Select A's).

·AN/PVS-14 SB Gen 3 Standard
·AN/PVS-14 SB Gen 3 Select Alpha (comes with authentic ITT Tube Data Card). Min. 64LP.
·AN/PVS-14 SB Gen 3 Select Alpha Hand Picked (comes with authentic ITT Tube Data Card). 64LP tubes with most at 73LP listed on the data cards!

PVS-14 SB/6015 SB Gen 3 TECHNICAL SPECIFICATIONS
Image Intensifier - Generation 3 US
Resolution - 64-72 lp/mm
Magnification - 1x (3x or 5x optional)
Lens System - 26 mm f1.2
FOV - 40˚
@1000 yards - 2099’
@1000 meters - 640 meters
Range of Focus -10” to infinity/25 cm to infinity
Detection Range - 1148’/350 meters
Recognition Range - 984’/300 meters
Diopter Adjustment - +2 to -6
Weather Resistant - Water Proof 3’ for 30 min
Camera/Camcorder Adaptable - Yes
IR Illuminator - Yes
Battery Type/Life - AA(x1) / 40 hours
Dimensions - 4.5” x 2.25” x 2”/114mm x 57mm x 50mm
Weight - 12.5 oz/355 grams
Operating Temperature -60° F to 120° F/-51°C to +49°C
Warranty - 2 years

Many out there who are budget minded but will not sacrifice a quality product, so here are a few products to help you get into some amazing gear with good value in the single battery units.

· Gen 3 Select Alpha “B” grade tubes for the 6015 SB units. Uncompromising performance of the Select Alpha image intensifiers for Generation 2 price. The cosmetic imperfections do not impair the famous performance or warranty of these tubes, and provide a very cost effective option of owning top quality Generation 3 unit at a fraction of the regular price.

· Gen 2 SHP (Super High performance) tube that is now available in a 6015 version of the single battery unit. I am absolutely impressed with the performance of theses tubes. Their cosmetics are just about flawless with very high signal to noise ratios. These 6015 Single Battery Generation 2+ Super High-Performance Multi-Purpose System is the closest you can get to Generation 3 performance, without paying the Generation 3 price. These tubes are rated for 5000hrs and are the best value out there for the limited budget.

PVS-14 SB/6015 SB Gen 2 SHP TECHNICAL SPECIFICATIONS
Image Intensifier - Generation 3 US
Resolution - 51-64+ lp/mm
Magnification - 1x (3x or 5x optional)
Lens System - 26 mm f1.2
FOV - 40˚
@1000 yards - 2099’
@1000 meters - 640 meters
Range of Focus -10” to infinity/25 cm to infinity
Detection Range - 1148’/350 meters
Recognition Range - 984’/300 meters
Diopter Adjustment - +2 to -6
Weather Resistant - Water Proof 3’ for 30 min
Camera/Camcorder Adaptable - Yes
IR Illuminator - Yes
Battery Type/Life - AA(x1) / 40 hours
Dimensions - 4.5” x 2.25” x 2”/114mm x 57mm x 50mm
Weight - 12.5 oz/355 grams
Operating Temperature -60° F to 120° F/-51°C to +49°C
Warranty - 2 years

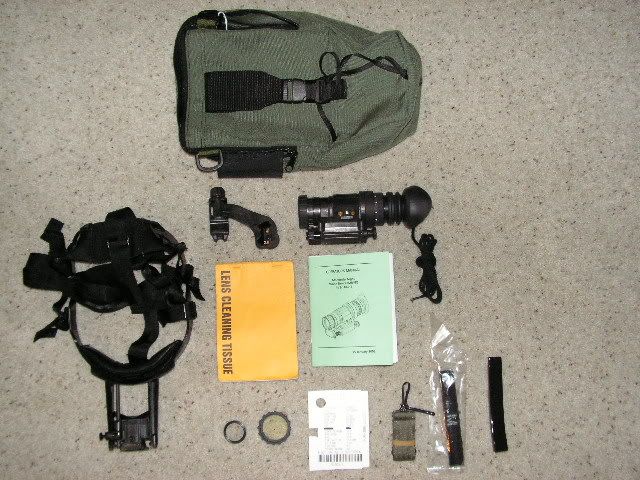

Typical Package with the standard accessories.

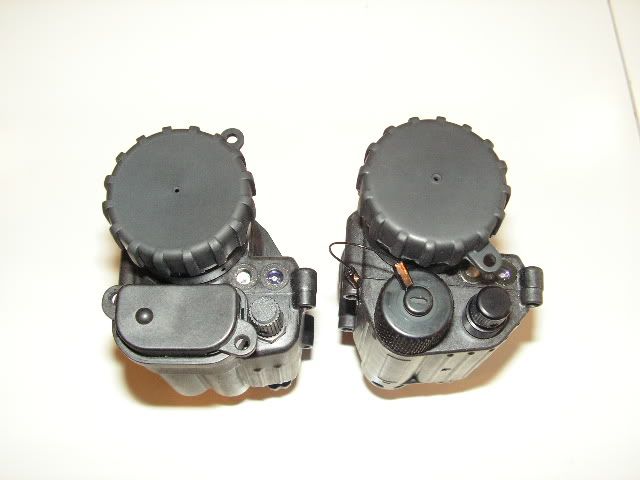

Some good comparison pics of the dual battery units and the new single batt. units

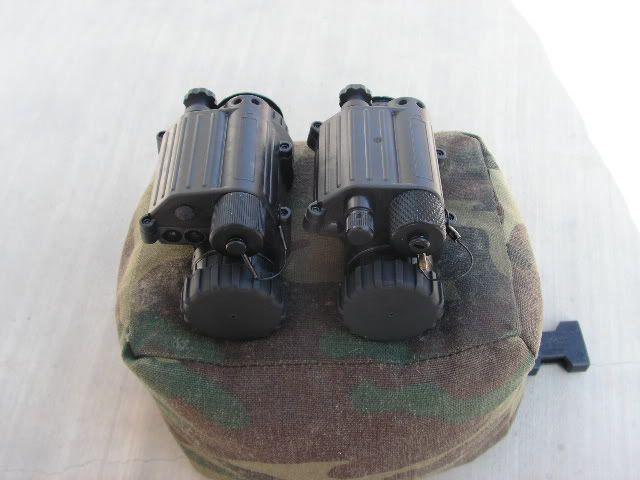

Comparison shot of the 6015 SB (left) and the adj gain AN/PVS-14 SB (right)

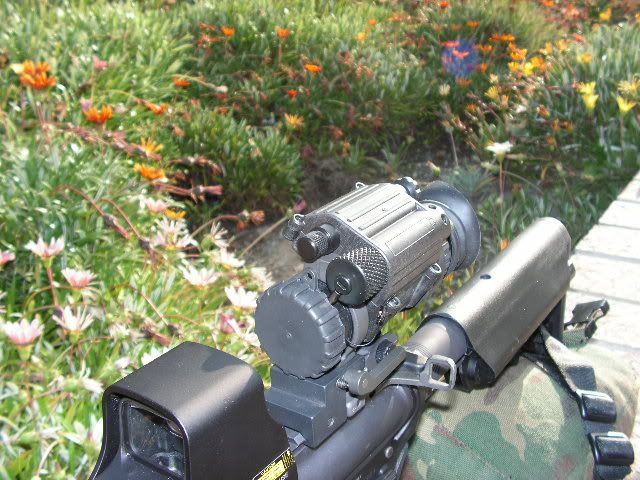

Weapon mounted shots as the single batt. units use the same mounting platforms as the dual unit.

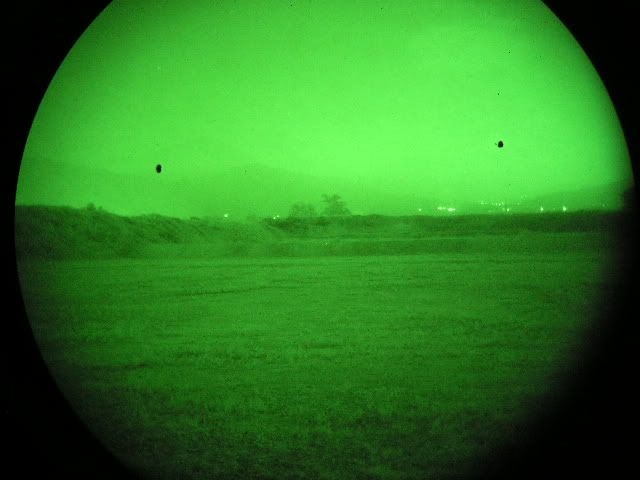

Now for some through the tube shots! Far birm is at 200m
AN/PVS-14 Select A - Hand Picked

6015 Select A - B Grade tube. Great image, with minor blems.

6015 Gen 2 Super High Performance (SHP)

Prices for above gear
· AN/PVS-14 SB Gen 3 Select Alpha Hand Picked at [red]$3495.00[/red]
· AN/PVS-14 SB Gen 3 Select Alpha at $3395.00
· AN/PVS-14 SB Gen 3 Standard at $3295.00
· 6015 SB Gen 3 Select Alpha B Tube at $2749.00
· 6015 SB Gen 2 SHP at $2699.00
Victor Di Cosola
Tactical Night Vision Company
http://www.tnvc.com
victor@tnvc.com
(909)796-7000
Clutch

Posts: 108
Joined: Wed Apr 13, 2005 6:26 pm

Re: NEW AN/PVS-14 and 6015 Single Battery Units Hits the Mar

Postby hardeeman » Mon Oct 23, 2006 8:07 pm

Clutch wrote:Hello all,

This is it!! After a long wait, available for the first time the Single battery unit AN/PVS-14 and 6015’s. These units have been restricted for quite some time to military and LE units.

The single-battery configuration delivers the same features and versatility as the earlier PVS-14 and 6015 dual-battery versions in a lighter weight monocular, providing greater mobility and comfort under normal operational conditions.



Actually these were modified for the sole purpose of being more user friendly for the soldiers. The previous one which I had to repair thousand of times had a problem with the battery covers coming off in a rough way. Really what happened was that people were abusing the cover by yanking at it and pulling it all ways but the right way.

This in turn started costing soldiers ordering through fedlog bundles. All they had to do was add a little silicone grease to the o'ring and everything would have been fine but uncle sam would not include silicone grease with the BII to troops due to the price. So they just changed the battery cap and made it a grunt effective screw off top, how about that.
hardeeman

Posts: 66
Joined: Sat Oct 21, 2006 11:23 am
Location: Fort Belvoir Virginia

Postby vincep » Mon Oct 23, 2006 9:08 pm

Well, in the process of making them "grunt proof" they made them lighter, which is a good thing. I have the 6015 and it weighs only 12 oz.
